Draw on Photos Imported on Inspections

To use the drawing option on photos imported during inspections, start by opening the inspection report and selecting the desired photo.

Use the provided tools to highlight areas, add notes, or mark specific points directly on the image.

Once finished, save your changes to ensure the annotated photo is included in your report.

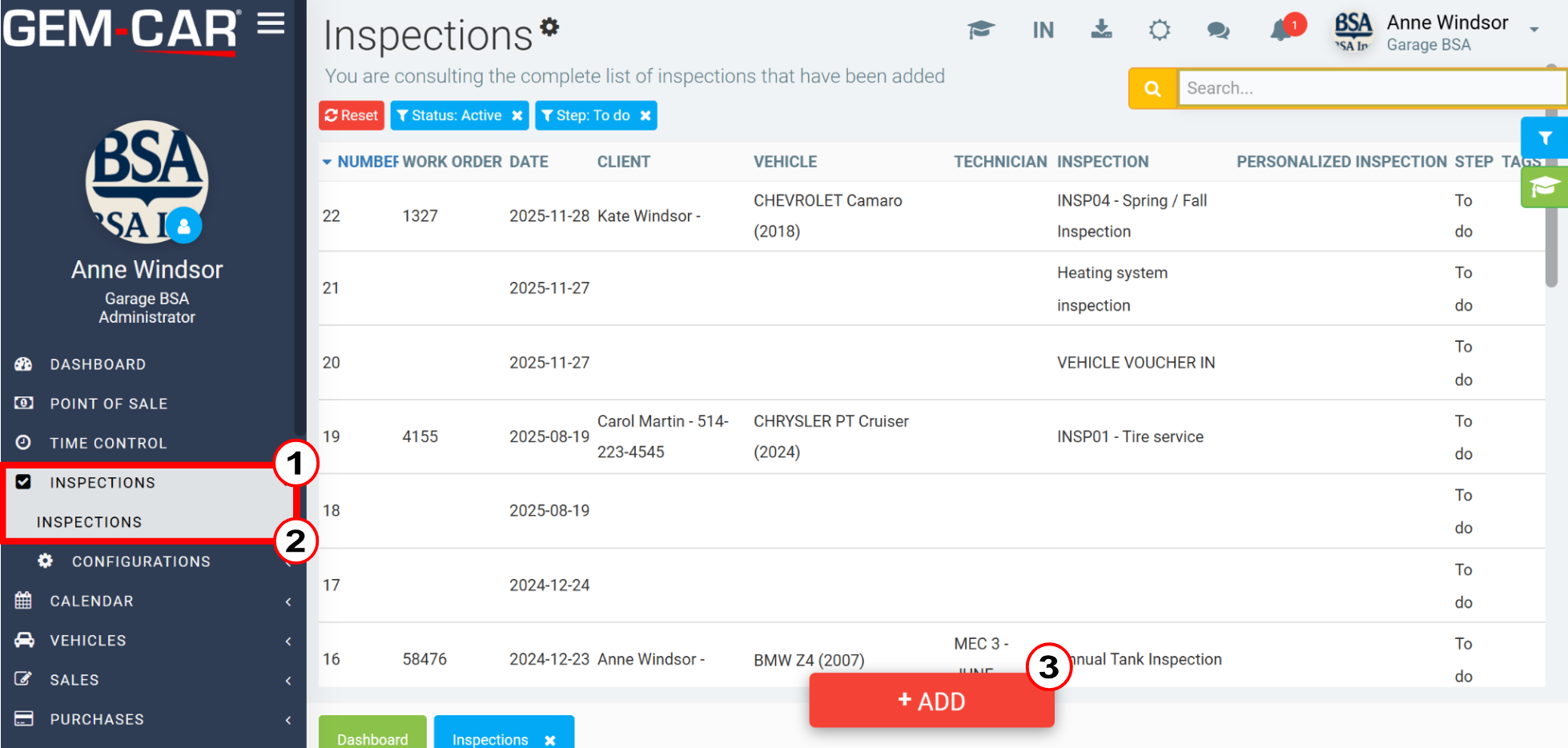

Click on Inspections > Inspections > +Add to create a new inspection.

In the next window, in the Info tab, enter all the information needed to create a new inspection:

• Number;
• Work order;
• Client;
• Vehicle;
• Technician;
• Inspection;
• Odometer in;
• Odometer out;
• Step.

If the Client or Vehicle is already in the system, you can find it by entering part of the name in the text box: suggestions will appear in a drop-down menu. Another option is to click on the magnifying glass to find the name in the list. If the Client or Vehicle does not exist, you can create it. Click on the red + button.

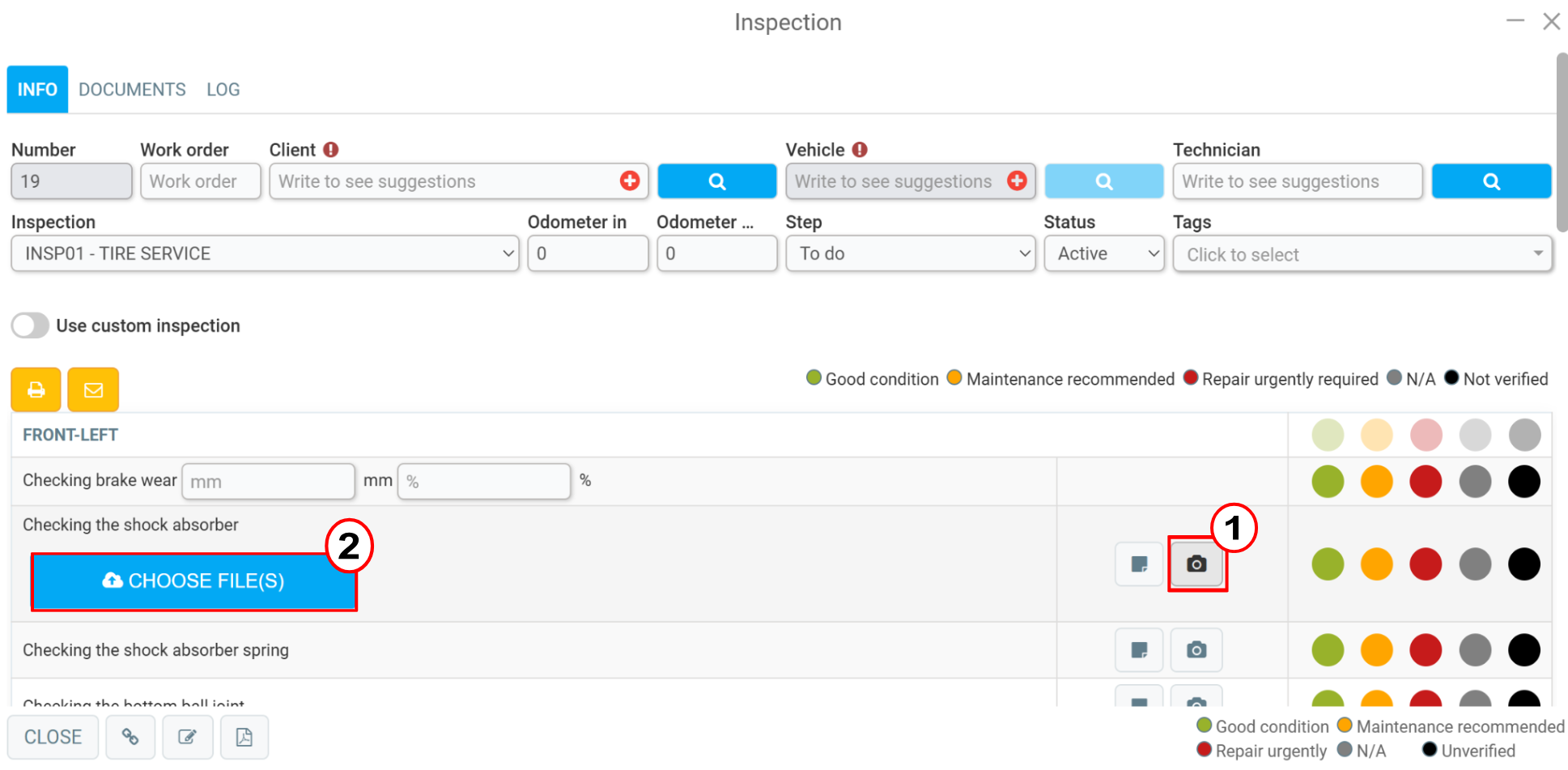

To insert a photo, which will help prove some information relevant to the inspection, click on the photo icon. Then click on Choose file(s).

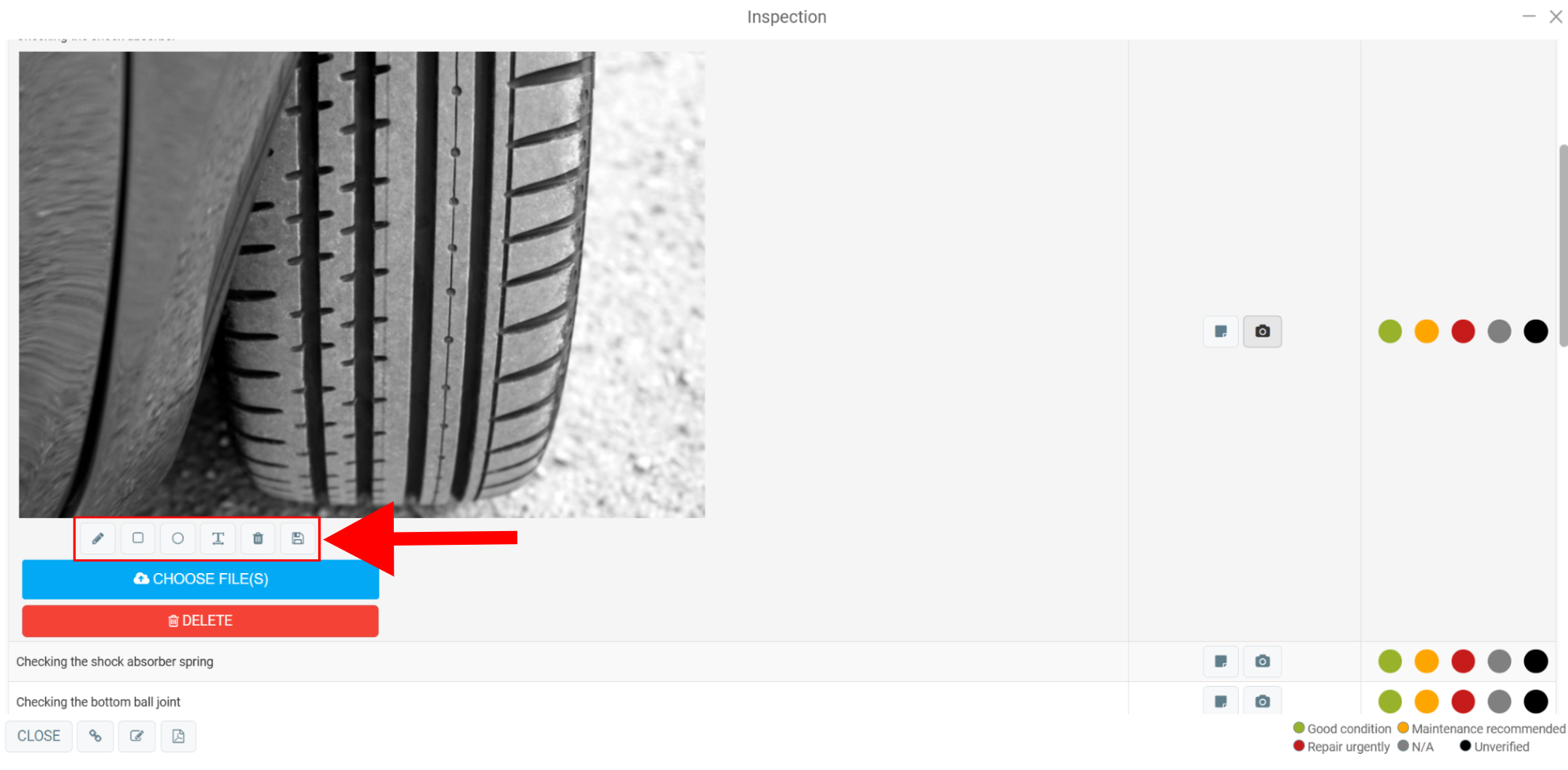

Once you've chosen the right photo file, a bar with various editing options appears below the selected image.

You can use the pencil to write, the circle and square to highlight a specific space, and the text to leave a message.

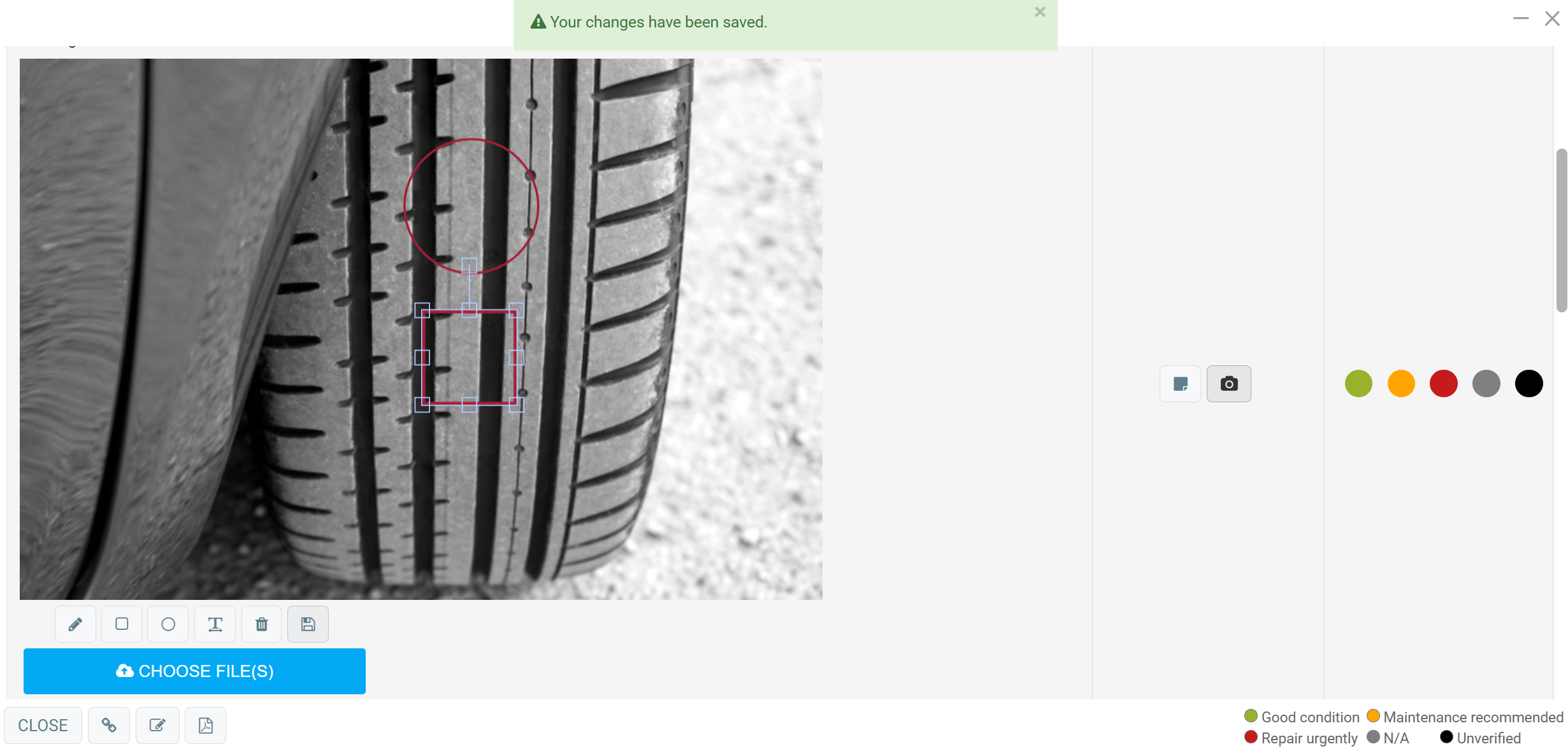

You can delete changes by pressing the trash button, or save all changes by clicking on the floppy disk. The following message appears in green: Your changes have been saved.

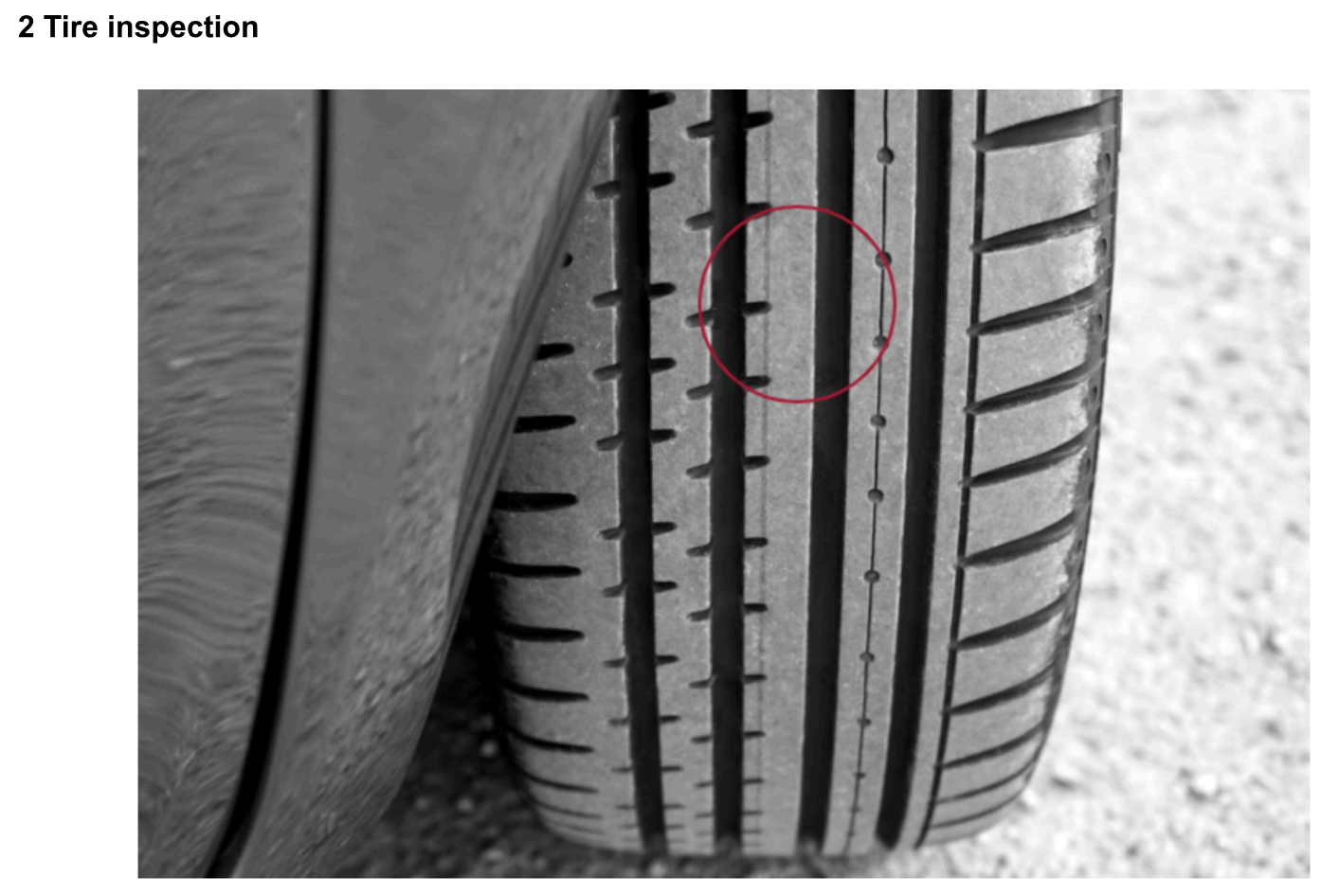

When generating the report in PDF format, the photo will appear at the end of the document, along with any changes made to the photo.
